Vector Indexes

LanceDB offers two main vector indexing algorithms: Inverted File (IVF) and Hierarchically Navigable Small Worlds (HNSW). You can create multiple vector indexes within a Lance table. This guide walks through common configurations and build patterns.

​

Option 1: Self-Hosted Indexing

Manual, Sync or Async: If using LanceDB Open Source, you will have to build indexes manually, as well as reindex and tune indexing parameters. The Python SDK lets you do this sychronously and asychronously.

​

Option 2: Automated Indexing

Automatic and Async: Indexing is automatic in LanceDB Cloud/Enterprise. As soon as data is updated, our system automates index optimization. This is done asychronously. Here is what happens in the background - when a table contains a single vector column named vector, LanceDB automatically:

• Infers the vector column from the schema
• Creates an optimized IVF_PQ index without manual configuration
• The default distance is l2 or euclidean

Finally, LanceDB Cloud/Enterprise will analyze your data distribution to automatically configure indexing parameters.

​

Example: Construct an IVF Index

In this example, we will create an index for a table containing 1536-dimensional vectors. The index will use IVF_PQ with L2 distance, which is well-suited for high-dimensional vector search. Make sure you have enough data in your table (at least a few thousand rows) for effective index training.

​

Index Configuration

Sometimes you need to configure the index beyond default parameters:

• Index Types:
  • IVF_PQ: Default index type, optimized for high-dimensional vectors
  • IVF_HNSW_SQ: Combines IVF clustering with HNSW graph for improved search quality
• metrics: default is l2, other available are cosine or dot
  • When using cosine similarity, distances range from 0 (identical vectors) to 2 (maximally dissimilar)
• num_partitions: The number of partitions in the IVF portion of the index. This number is usually chosen to target a particular number of vectors per partition. A common heuristic is num_rows / 8192. Larger values generally make index building take longer but use less memory, and they often improve accuracy at the cost of slower search because queries typically need a higher nprobes. LanceDB automatically selects a sensible default num_partitions based on the heuristic mentioned above.
• num_sub_vectors: The number of sub-vectors that will be created during Product Quantization (PQ). This number is typically chosen based on the desired recall and the dimensionality of the vector. Larger num_sub_vectors increases accuracy but can significantly slow queries; a good starting point is dimension / 8.

Let’s take a look at a sample request for an IVF index:

​

1. Setup

Connect to LanceDB and open the table you want to index.

​

2. Construct an IVF Index

Create an IVF_PQ index with cosine similarity. Specify vector_column_name if you use multiple vector columns or non-default names. By default LanceDB uses Product Quantization; switch to IVF_SQ for scalar quantization.

​

3. Query the IVF Index

Search using a random 1,536-dimensional embedding.

​

Search Configuration

The previous query uses:

• limit: number of results to return
• nprobes: number of IVF partitions to scan; covering roughly 5–10% of partitions often balances recall and latency
• refine_factor: reads additional candidates and reranks in memory
• .to_pandas(): converts the results to a pandas DataFrame

​

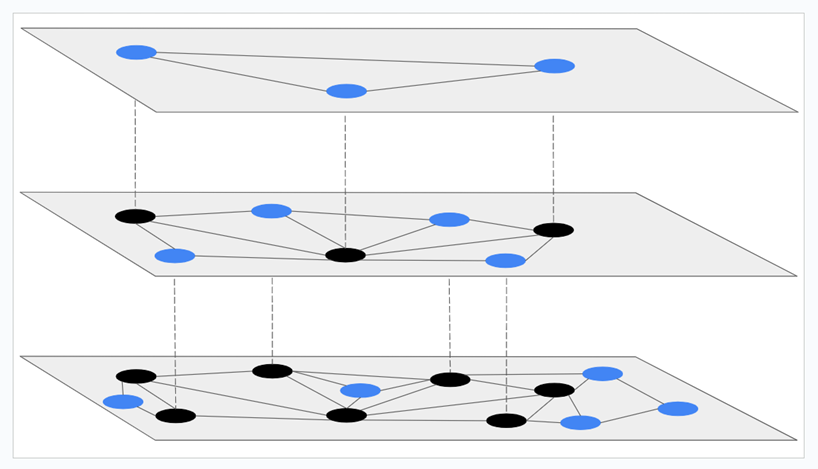

Example: Construct an HNSW Index

​

Index Configuration

There are three key parameters to set when constructing an HNSW index:

• metric: The default is l2 euclidean distance metric. Other available are dot and cosine.
• m: The number of neighbors to select for each vector in the HNSW graph.
• ef_construction: The number of candidates to evaluate during the construction of the HNSW graph.

​

1. Construct an HNSW Index

​

2. Query the HNSW Index

​

Example: Construct a Binary Vector Index

Binary vectors are useful for hash-based retrieval, fingerprinting, or any scenario where data can be represented as bits.

​

Index Configuration

• Store binary vectors as fixed-size binary data (uint8 arrays, with 8 bits per byte). For storage, pack binary vectors into bytes to save space.
• Index Type: IVF_FLAT is used for indexing binary vectors
• metric: the hamming distance is used for similarity search
• The dimension of binary vectors must be a multiple of 8. For example, a 128-dimensional vector is stored as a uint8 array of size 16.

​

1. Create Table and Schema

​

2. Generate and Add Data

​

3. Construct the Binary Index

​

4. Vector Search

​

Check Index Status

Vector index creation is fast - typically a few minutes for 1 million vectors with 1536 dimensions. You can check index status in two ways:

​

Option 1: Check the UI

Navigate to your table page - the “Index” column shows index status. It remains blank if no index exists or if creation is in progress.

​

Option 2: Use the API

Use list_indices() and index_stats() to check index status. The index name is formed by appending “_idx” to the column name. Note that list_indices() only returns information after the index is fully built. To wait until all data is fully indexed, you can specify the wait_timeout parameter on create_index() or call wait_for_index() on the table.
